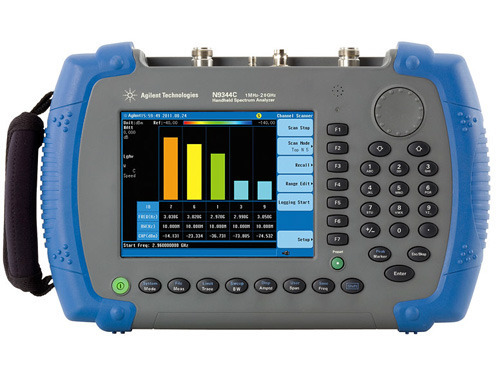

 N9344C Handheld Spectrum Analyzer (HSA), 20 GHz


주요 특징 및 사양


Spectrum analyzer

 ＊9 kHz to 20 GHz

 ＊–144 dBm displayed average noise level (DANL)

 ＊±1.3 dB amplitude accuracy

 ＊< 0.95 s sweep time for 20 GHz full span


Tracking generator (TG)

 ＊5 MHz to 7 GHz

 ＊Output level: –20 to 0 dBm, 1 dB step

 ＊Built-in GPS receiver and GPS antenna


Measurements

 ＊Channel scanner measures up to 20 channels simultaneously

 ＊Spectrum monitor with spectrogram display, record, and playback

 ＊Peak and average power measurement with Agilent U2020 X-Series and U2000 series USB power sensors

 ＊AM/FM/ASK/FSK modulation analysis and time-gated spectrum analysis


HSA instrument attributes

 ＊Standard 3-year warranty

 ＊Battery life: 3.5 hours

 ＊Weight: 3.2 kg or 7 lbs

 ＊Operating temperature: –10 to +50 ºC (14 to 131 ºF)



내용

N9342C/N9343C/N9344C brochure


If you are making measurements in the field, the Agilent N9344C handheld spectrum analyzer (HSA) makes your job easier. MIL PRF 28800 Class 2 compliant, it has the features you need for operating in tough field environments and its measurement performance gives you confidence the job’s been done right. The N9344C HSA lets you automate routine tasks to save time and ensure consistent results. Field testing just got easier with the Agilent N9344C HSA.


 ＊Get field-ready features - rugged and fanless design, clear viewing both day and night

 ＊Gain confidence in your measurements with benchtop performance in a handheld instrument

 ＊Reduce test setup time by 95% using the innovative task planner option

 ＊The following accessories are included with every HSA: AC/DC adapter, battery, USB cable, quick start tutorial and help kit CD. In addition, Agilent Technologies offers a standard 3-year warranty on all RF and microwave HSA analyzers. Please note that for a short time, online Quotes will reflect a charge for the 3-year warranty. This charge will be waived when an order is placed.
