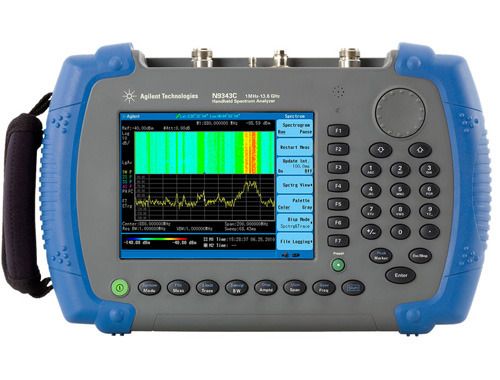

핸드형 스펙트럼 분석기 N9343C (HSA), 13.6 GHz

주요 특징 및 사양

Spectrum analyzer

9 kHz to 13.6 GHz

–144 dBm displayed average noise level (DANL)

±1.3 dB amplitude accuracy

< 0.7 s sweep time for 13.6 GHz full span

Tracking generator (TG)

5 MHz to 7 GHz

Output level: –20 to 0 dBm, 1 dB step

Built-in GPS receiver and GPS antenna

Measurements

Channel scanner measures up to 20 channels simultaneously

Spectrum monitor with spectrogram display, record, and playback

Peak and average power measurement with Agilent U2020 X-Series and U2000 series USB power sensors

AM/FM/ASK/FSK modulation analysis and time-gated spectrum analysis

HSA instrument attributes

Standard 3-year warranty

Battery life: 3.5 hours

Weight: 3.2 kg

Operating temperature: –10 to +50 ºC (14 to 131 ºF)

내용

N9342C/N9343C/N9344C brochure

If you are making measurements in the field, the Agilent N9343C handheld spectrum analyzer (HSA) makes your job easier. MIL PRF 28800 Class 2 compliant, it has the features you need for operating in tough field environments and its measurement performance gives you confidence the job’s been done right. The N9343C HSA lets you automate routine tasks to save time and ensure consistent results. Field testing just got easier with the Agilent N9343C HSA.

Get field-ready features - rugged and fanless design, clear viewing both day and night

Gain confidence in your measurements with benchtop performance in a handheld instrument

Reduce test setup time by 95% using the innovative task planner option

The following accessories are included with every HSA: AC/DC adapter, battery, USB cable, quick start tutorial and help kit CD. In addition, Agilent Technologies offers a standard 3-year warranty on all RF and microwave HSA analyzers. Please note that for a short time, online Quotes will reflect a charge for the 3-year warranty. This charge will be waived when an order is placed.
