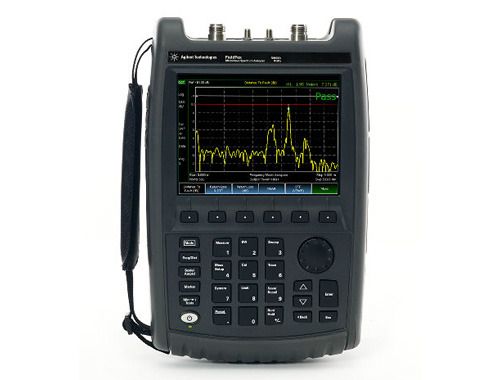

N9938A FieldFox Handheld Microwave Spectrum Analyzer, 26.5 GHz

주요 특징 및 사양

Spectrum analyzer

5 kHz to 26.5 GHz

± 0.6 dB amplitude accuracy, full band, over full temperature range of -10 to +55 °C (14 to 131 °F)

Spur-free dynamic range ≥ 105 dB

Tracking generator

30 kHz to 26.5 GHz

VSWR and reflection measurements

Power measurements

Channel power, occupied bandwidth and adjacent channel power ratio

Power measurements with USB sensor: 9 kHz to 24 GHz (sensor dependent)

Built-in power meter: 5 kHz to 26.5 GHz

FieldFox instrument attributes

Standard 3-year warranty

Battery life: 3.5 hours

Weight: 3.0 kg or 6.6 lbs

Operating temperature: -10 to +55 °C (14 to 131 °F)

내용

FieldFox Microwave Spectrum Analyzers, Technical Overview

FieldFox Comparison Summary

FieldFox is equipped to handle routine maintenance, in-depth troubleshooting and anything in between. FieldFox delivers Agilent-quality measurements – wherever you need to go. Add FieldFox to your kit, and carry precision with you.

The spectrum analyzer’s base function is spectrum analysis, and can be configured to include; full-band tracking generator and preamplifier, interference analyzer, VSWR and reflection measurements, built-in power meter, USB power sensor support, GPS receiver and DC bias voltage source.

The following accessories are included with every FieldFox: AC/DC adapter, battery, soft carrying case, LAN cable, Quick Reference Guide and User’s Guide. In addition, Agilent Technologies offers a standard 3-year warranty on all RF and microwave FieldFox analyzers. Please note that for a short time, online Quotes will reflect a charge for the 3-year warranty. This charge will be waived when an order is placed.

Applications

Satellite communications

Microwave backhaul

Military communications

Radar systems

Active and passive device test

Accuracy

Get precise measurements that agree with benchtop results

InstAlign – Unprecedented absolute amplitude accuracy across the full band, no warm-up required

Rugged

Dust-free design with no fans, no vents extends instrument reliability in harsh environments

Water-resistant; withstands salty, humid environments

Compliant with MIL-PRF-28800F Class 2

Compliant with MIL-STD-810G, Method 511.5, Procedure 1, operation in explosive environments
